Extended Kalman Filter (EKF) ​

Problem Statement ​

The EKF estimates nonlinear UAV state with Gaussian uncertainty when direct closed-form Bayesian updates are unavailable. It is commonly used for tightly-coupled inertial and positional sensing in real-time flight stacks.

Model and Formulation ​

Nonlinear system:

$$ x_k = f(x_{k-1}, u_k) + w_k,\quad z_k = h(x_k) + v_k $$

Linearization around the current estimate yields Jacobians F_k = \partial f/\partial x, H_k = \partial h/\partial x. The covariance recursion is:

$$ P_{k|k-1} = F_k P_{k-1|k-1} F_k^\top + Q_k $$

$$ K_k = P_{k|k-1}H_k^\top(H_kP_{k|k-1}H_k^\top + R_k)^{-1} $$

Algorithm Procedure ​

  1. Predict state with nonlinear process model f.
  2. Propagate covariance using local Jacobian F_k.
  3. Compute innovation y_k = z_k - h(\hat{x}_{k|k-1}).
  4. Update state and covariance with Kalman gain K_k.

Tuning Guidance ​

  • Start with conservative Q to avoid overconfident predictions.
  • Increase R for noisy GPS updates in urban or multipath environments.
  • Validate filter consistency using normalized innovation squared (NIS).

Failure Modes and Diagnostics ​

  • Linearization error can destabilize updates during aggressive maneuvers.
  • Unmodeled bias states produce persistent innovation drift.
  • Divergence often appears as shrinking covariance but rising position error.

Implementation and Execution ​

bash
python -m uav_sim.simulations.estimation.ekf

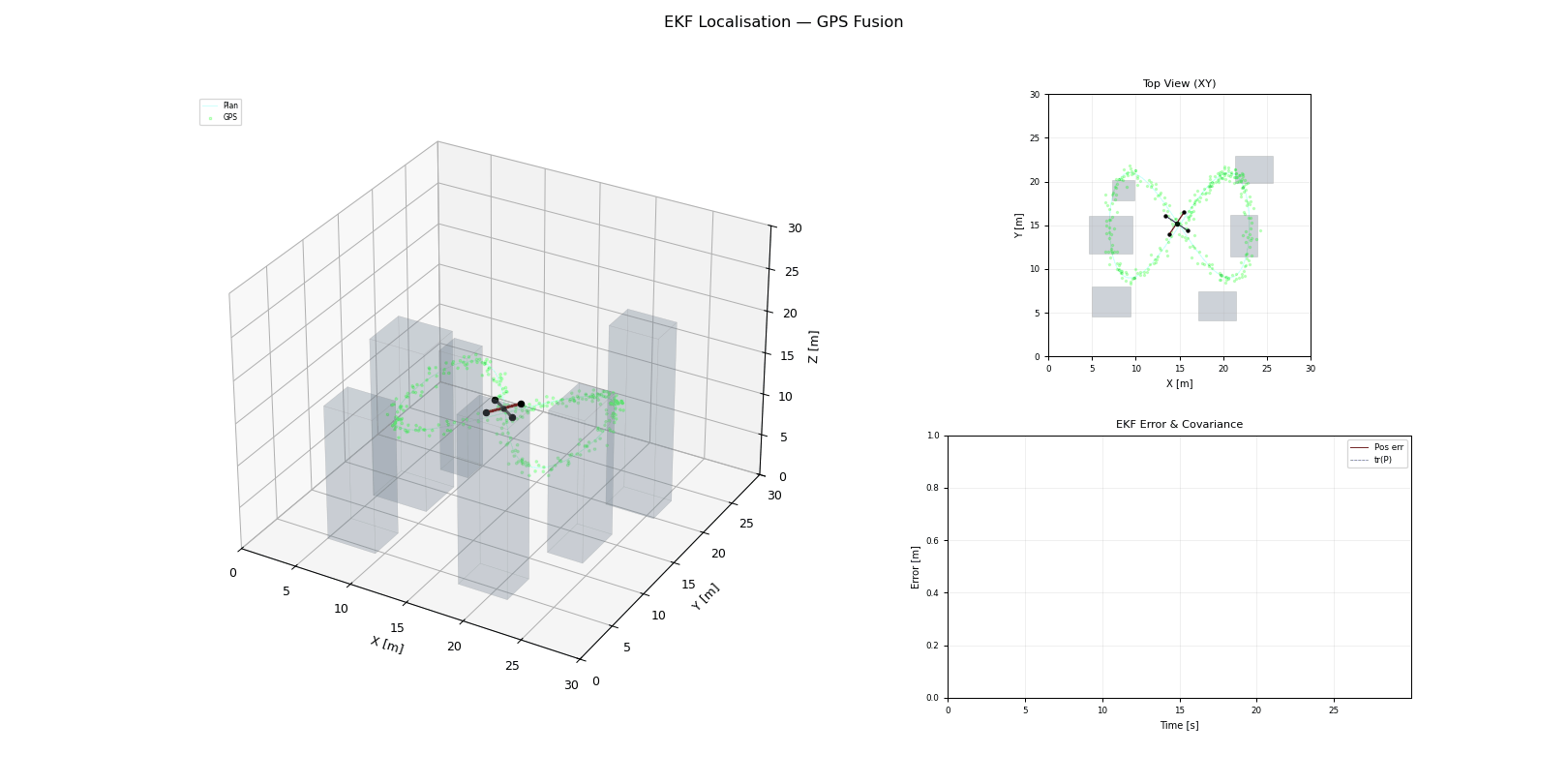

Evidence ​

EKF
